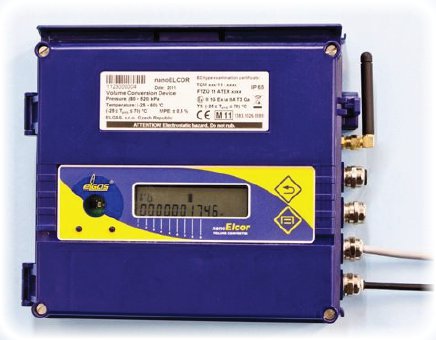

ELGAS nanoELCOR Gas volume converter with integrated GSM/GPRS/SMS modem

NanoELCOR is an electronic, battery powered gas volume converter, equipped with GSM/GPRS/SMS modem. Compactly designed, this is the thinnest industrial device of this kind. It may be installed as a standalone device, or integrated on G10 and higher size volumetric gas meters. Battery lifetime longer than 5 years. LCD alphanumeric, LED backlighted display. High measuring accuracy and stability. Remote firmware update, according to WELMEC 7.2. ATEX approved for hazardous zones 0; 1 and 2. Complies to 2004-22-EC (MID) and EN12405-1+A2 standards.

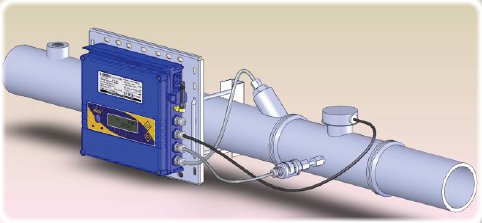

Pipe mounting example

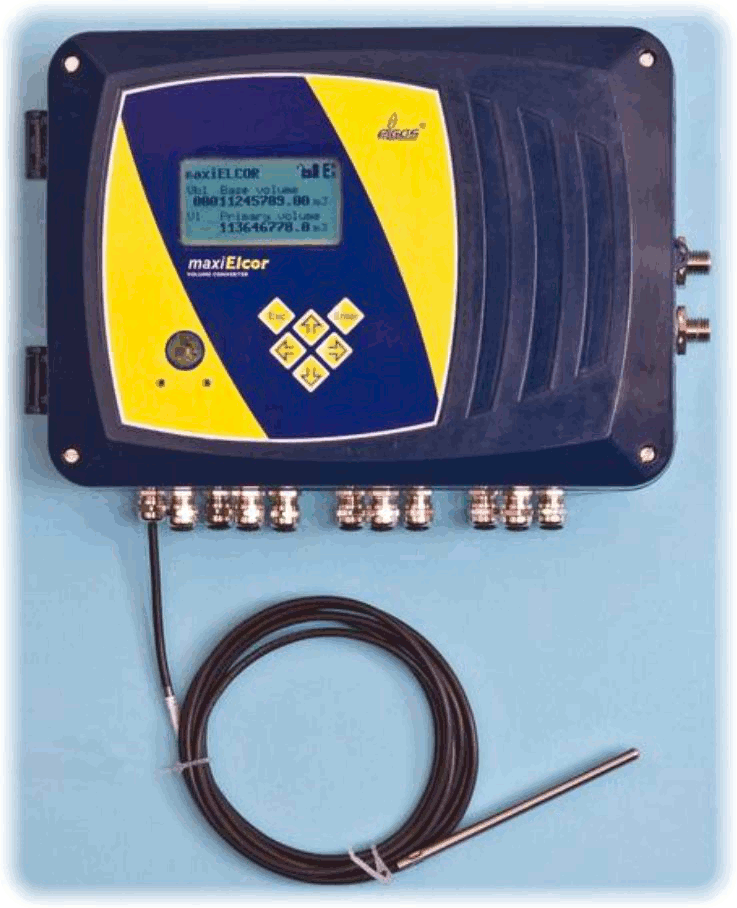

MaxiELCOR is designed for the conversion of measured gas volume to standard conditions. For this purpose, it reads pulses from the mechanical gas meter and measures gas temperature and pressure. Available in PTZ, PT, TZ and T versions. It supports calculation algorithms for gas compressibility coefficient according to AGA 8-92DC, AGA NX-19 mod., AGA 8-G1, AGA 8-G2, SGERG-88 or fixed. For the connection to the upper system level, it may use the RS-232 or RS-485 interface, an infrared reading output head, or the built-in GSM modem. The device supports the TCP/IP protocol and has standard functions for AMR systems.

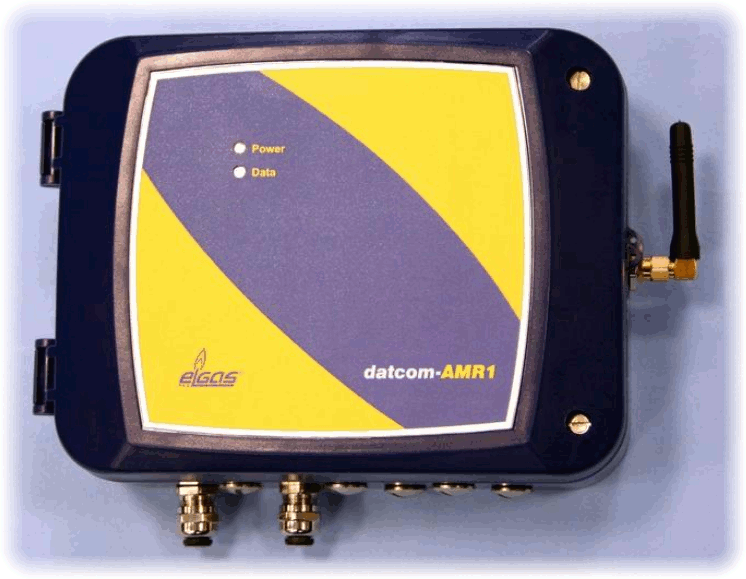

The data communicator DATCOM-AMR1 is a GSM communication device, aimed for remote reading of utility networks. It is designed for remote transfer of data from the volume converters to the data collecting and processing AMR system.
